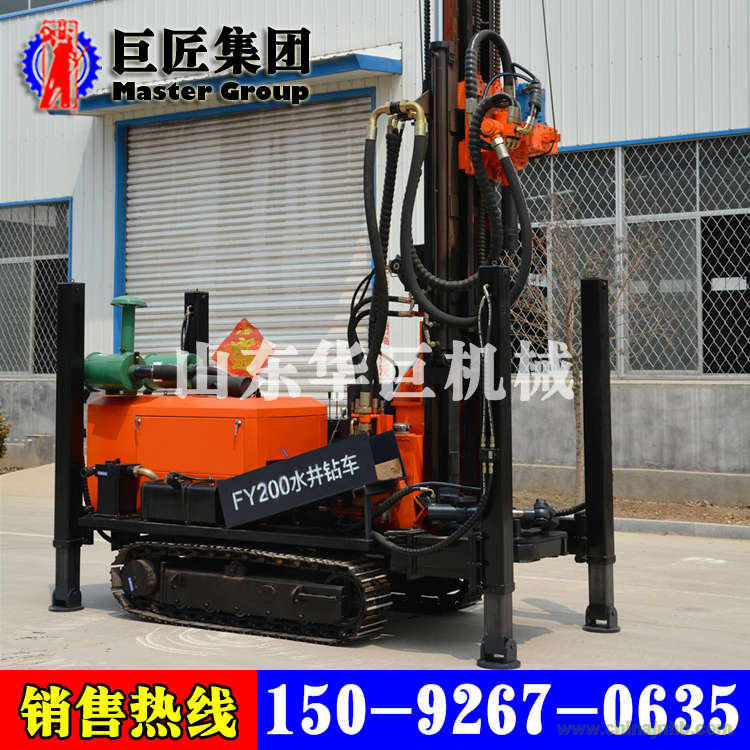

一、FY200履帶式氣動水井鉆機適用范圍
適用于工民鉆井、地溫鉆井，具有鉆孔直徑大、鉆孔深、進尺快，靈活高效等優點。
二、FY200履帶式氣動水井鉆機技術參數
|
型號model
|
FY200
|
|
整機重量Gross weight
|
T
|
4.6
|
|
外型尺寸Dimension
|
mm
|
3800*1600*2450
|
|
鉆孔直徑Aperture
|
mm
|
140-325
|
|
鉆孔深度Drilling depth
|
m
|
200
|
|
一次性推進長度Feed stroke
|
mm
|
3000
|
|
行走速度Travel speed
|
km/h
|
2.5
|
|
爬坡能力Grade ability
|
Max.
|
30°
|
|
離地間隙Rising height from ground
|
mm
|
250
|
|
工作氣壓Wind pressure
|
Mpa
|
1.7-3.0
|
|
耗氣量Air consumption
|
m3/min
|
17-35
|
|
主機功率Engine power
|
kw
|
65
|
|
回轉速度Rotary speed
|
rpm
|
50-70
|
|
回轉扭矩Rotation torque
|
N.m
|
5000-6500
|
