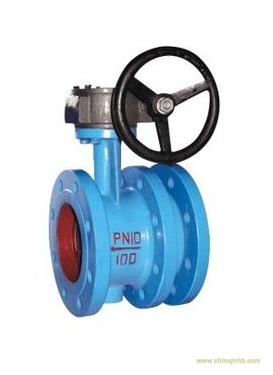

SD343X蝸輪傳動法蘭式伸縮蝶閥詳細資料
蝸輪傳動法蘭式伸縮蝶閥具有自動補償管道熱脹冷縮方便裝卸的功能，蝸輪傳動法蘭式伸縮蝶閥使用溫度在80℃以下，公稱壓力在1.6MPa以下的石油，化工、電力、造紙、給排水和市政建設等工業管道上，蝸輪傳動法蘭式伸縮蝶閥作調節流量和截斷流體的最佳裝置。
蝸輪傳動法蘭式伸縮蝶閥主要尺寸
| DN |
H1 |
H2 |
H3 |
最大長度Lmax |
最小長度Lmin |
設計長度L |
D1 |
Z-d |
重量 kg |
| mm |
0.6MPa |
1.0MPa |
1.6MPa |
0.6MPa |
1.0MPa |
1.6MPa |
| 50 |
309 |
112 |
117 |
164 |
138 |
151 |
110 |
125 |
125 |
4-14 |
4-18 |
4-19 |
14.3 |
| 65 |
337 |
112 |
117 |
190 |
154 |
172 |
130 |
145 |
145 |
4-14 |
4-18 |
4-19 |
16.8 |
| 80 |
347 |
135 |
117 |
195 |
163 |
177 |
150 |
160 |
160 |
4-18 |
8-18 |
8-19 |
18.7 |
| 100 |
373 |
142 |
117 |
205 |
180 |
190 |
170 |
180 |
180 |
4-18 |
8-18 |
8-19 |
26.2 |
| 125 |
405 |
160 |
117 |
196 |
164 |
180 |
200 |
210 |
210 |
8-18 |
8-18 |
8-19 |
33.6 |
| 150 |
440 |
180 |
117 |
227 |
192 |
210 |
225 |
240 |
240 |
8-18 |
8-22 |
8-23 |
37.3 |
| 200 |
612 |
225 |
212 |
247 |
212 |
230 |
280 |
295 |
295 |
8-18 |
8-22 |
12-23 |
68.7 |
| 250 |
693 |
266 |
212 |
267 |
232 |
250 |
335 |
350 |
355 |
12-18 |
12-22 |
12-28 |
86.6 |
| 300 |
747 |
290 |
212 |
287 |
252 |
270 |
395 |
400 |
410 |
12-22 |
12-22 |
12-28 |
120 |
| 350 |
802 |
320 |
212 |
310 |
270 |
290 |
445 |
460 |
470 |
12-22 |
16-22 |
16-28 |
157 |
| 400 |
991 |
400 |
265 |
332 |
290 |
310 |
495 |
515 |
525 |
16-22 |
16-26 |
16-31 |
227 |
| 450 |
1037 |
425 |
265 |
352 |
310 |
330 |
550 |
565 |
585 |
16-22 |
20-26 |
20-31 |
260 |
| 500 |
1127 |
480 |
265 |
375 |
330 |
350 |
600 |
620 |
650 |
20-22 |
20-26 |
20-34 |
300 |
| 600 |
1377 |
520 |
380 |
420 |
360 |
390 |
705 |
725 |
770 |
20-26 |
20-30 |
20-37 |
540 |
| 700 |
1796 |
577 |
380 |
465 |
395 |
430 |
810 |
840 |
840 |
24-26 |
24-30 |
20-37 |
684 |
| 800 |
1484 |
620 |
270 |
510 |
430 |
470 |
920 |
950 |
950 |
24-30 |
24-33 |
24-40 |
952 |
| 900 |
1676 |
715 |
285 |
555 |
465 |
510 |
1020 |
1050 |
1050 |
24-30 |
28-33 |
28-40 |
1290 |
| 1000 |
1760 |
760 |
285 |
600 |
500 |
550 |
1120 |
1160 |
1170 |
28-30 |
28-36 |
28-43 |
1456 |
| 1200 |
2018 |
900 |
285 |
690 |
570 |
630 |
1340 |
1380 |
1390 |
32-33 |
32-39 |
32-49 |
2310 |
| 1400 |
2363 |
1000 |
425 |
590 |
540 |
560 |
1560 |
1590 |
1590 |
36-36 |
36-42 |
36-49 |
2816 |
| 1600 |
2730 |
1160 |
425 |
630 |
585 |
605 |
1760 |
1820 |
1820 |
40-36 |
40-48 |
40-56 |
4218 |
| 1800 |
2844 |
1247 |
425 |
680 |
630 |
650 |
1970 |
2020 |
2020 |
44-39 |
44-48 |
44-56 |
5650 |
| 2000 |
3127 |
1362 |
425 |
730 |
680 |
700 |
2180 |
2230 |
2230 |
48-42 |
48-48 |
48-62 |
6000 |
