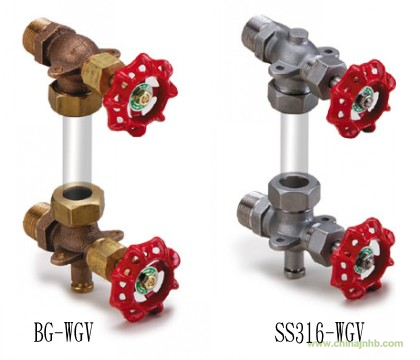

臺(tái)灣317水鏡閥BG-WGV/SS316-WGV
|
(BG-WGV/SS316-WGV) WATER GAUGE VALVE
|
MODEL : BG-WGV / SS316-WGV
|
* Please name the model No. (BG-WGV) when negotiation.
|
|
* The available Thread: BS21 or ANSI B2.1
|
|
* Working Pressure: 100 psi.
|
|
|
|
|
|
Test Pressure:
|
|
|
Body 230 psi. (Water)
|
|
|
Seat 100 psi. (Water)
|
|
|
|
Material:
|
|
Model:
|
BG-WGV
|
SS316-WGV
|
|
|
Body
|
BC 6
|
CF8M
|
|
|
Stem
|
BsBM
|
CF8M
|
|
|
Disc
|
BC 6
|
CF8M
|
|
|
Gland
|
BsBM
|
CF8M
|
|
|
Gland Packing
|
PTFE
|
PTFE
|
|
|
Packing Nut
|
BsBM
|
CF8M
|
|
|
Water Relief Valve
|
BsBM
|
CF8M
|
|
|
Nut
|
BsBM
|
AISI 316
|
|
|
Gauge Packing
|
NEOPRENE
|
VITON
|
|
|
Handle
|
CAST IRON
|
CAST IRON
|
|
|
DIMENSION
|
mm
|
|
Size
|
inch
|
1/2 x 1/2
|
1/2 x 5/8
|
3/4 x 3/4
|
|
|
|
|
mm
|
13.5 x 13.5
|
13.5 x 16
|
20 x 20
|
|
|
|
|
H1 (Close)
|
96
|
96
|
117
|
|
|
|
|
H2 Height
|
40
|
40
|
70
|
|
|
|
|
D Handle
|
53
|
53
|
57
|
|
|
|
|
