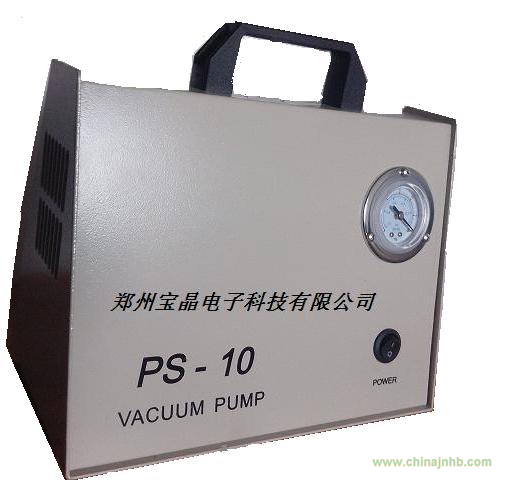

鄭州寶晶電子科技有限公司PS-10無油真空泵

PS-10無油真空泵儀器簡介：

鄭州寶晶電子科技有限公司的PS-10無油真空泵廣泛應用于過濾、樣品濃縮、固相萃取等裝置中，是實驗室重要的基礎設備。單泵是通過橡膠膜片上下往復運動，引導氣流通過泵頭，形成真空狀態。無油真空泵提供了完全潔凈的真空環境，泵體本身無需保養，而且不會產生任何污染物。
These pumps are widely used for applications including filtration, sample concentration, solid phase extraction. They are the important basic instruments in the lab. One-stage pump feature up and down movement of flexible diaphragm during the mechanical stage which induces a flow of gas through the pump head, generating a vacuum. Thus they can provide a clean vacuum over the entire vacuum range. Dry pumps require little maintenance and don’t generate any waste material.

PS-10無油真空泵技術參數：

型號：                                             PS-10                 PS-10A
流量Free-air capacity (L/min)                10                     10
最大真空度 Max vacuum ( kPa)             80                             50~80
功率 Power （W）                              20                     20
最高工作溫度 Max temperature          40℃ (104℉)           40℃ (104℉)
泵頭數Stages                                       1                       1
最佳工作時間 Best operating time           30min                 30min

PS-10無油真空泵主要特點：

1、采用結實的鋁合金外殼，不銹鋼或塑料提手，使用輕便，功能全面。
Portability and versatility with a tough, aluminum cover and stainless steel or plastic handle.
2. 提供了一個潔凈的真空環境，不會對系統產生污染。
Provide a clean vacuum and won’t contaminate your system.
3. 獨特的皮膜設計減少磨損，延長工作壽命。
Unique flat diaphragm design reduces wear and tear for long service life.
4. 內設過熱自動保護裝置防止電機損壞，延長泵的壽命。
Built-in heat-triggered protector prevents motor damage and extends pump life.
