HCRZ-400B熔體流動速率測定儀
HCRZ-400B melt flow rate testing instrument
(質量法/體積法)
( mass / volume )
一 產品名稱：熔體流動速率測定儀
Name of product: melt flow rate testing instrument
二 產品型號：HCRZ-400B
Two models: HCRZ-400B
三 主要用途及功能：
Three main purposes and functions:
熔融指數儀符合GB/T3682-2000的標準要求，熔融指數儀主要參數同時也滿足ISO1133-97、ASTM1238標準要求可用于對可用于聚乙烯、聚炳烯、聚苯乙烯、ＡＢＳ、聚酰胺、纖維樹脂、丙烯酸酯、聚甲醛、氟塑料、聚碳酸脂等多種塑料材料的熔體質量流動速率（MFR）或熔體體積流動速率（MVR）來進行測定；
Melt index accords with GB/T3682-2000 standard requirement, melt index instrument main parameters but also meet the requirements of ASTM1238 standard ISO1133-97, can be used for polyethylene, polyethylene, polystyrene, polyamide fiber, ABS, resin, acrylic, POM, fluorine plastic, polycarbonate and other plastics material melt flow rate ( MFR ) or melt volume flow rate ( MVR ) are measured;
熔融指數儀特點：
Melt index instrument features:
1、本儀器采用微處理控制和集成化、數字化的測控技術。按標準試驗流程進行程序化設定.
In 1, the instrument adopts the microprocessor control and integration, digital control technology. According to the standard test procedures procedures for setting.
2、升溫速度快、恒溫精度高；在填料之后，能迅速恢復恒溫狀態。
2, fast heating speed, high precision in temperature; filler, can quickly restore the constant temperature state.
3、中文彩晶顯示，語音提示、觸摸屏操作，方便易懂。
3, Chinese color crystal display, voice prompts, touch screen operation, easy to understand.
4、采用進口雙顯控溫表，測控精度高、控溫精度穩定。
4, using imported double display temperature, high measurement and control precision, temperature control precision and stability.
5、自動切料，可切硬質塑料。
5, automatic cutting, cutting rigid plastic.
6、可配位移測量裝置（B法、光耦）用體積法測量指數比較大的材料；
In 6, can be equipped with a displacement measuring device ( B, optocoupler ) with volume method in measuring the index of relatively large material;
7、微型打印機進行數據打印。
In 7, a miniature printer to print data.
8、該儀器加熱體元件已經淘汰同類產品采用的普通電加熱絲的方式，而采用稀有合金材料鎳鉻金屬壓鑄而成，具有長時間高溫狀態燒不壞的使用特點。
8, the apparatus heating element has been out similar products using the electrically heated wire mode, and uses the rare alloy nickel metal die casting, has a long time high temperature burning bad characteristics.
新增功能特點：
New features:
1、本儀器升級為觸摸屏控制，方式新穎，操作便捷簡便，更具人性化。
In 1, the instrument upgrades for the touch screen control, novel, simple operation and convenient, more humane.
2、更換了原有的單色液晶顯示屏，使用了大尺寸的65535真彩色彩屏，視覺效果更好，界面顯示信息更多。
In 2, replacing the original monochrome LCD screen, using the large size of the 65535 true color screen, better visual effect, interface display information more.
3、完善了試驗結果的計算功能，保留小數，將結果四舍五入，使得計算結果更精確。
3, improve the test results of calculation function, retention decimal, will result in four to five homes, and make the results more accurate.
4、各種參數設定可以任意設定，更便于試驗人員的可操作靈活性，滿足更多的試驗要求。
In 4, the setting of various parameters can be set, more convenient for test personnel can operate more flexibility, to meet the testing requirements.
5、試驗中的任意步驟均可手動跳過，方便測試。
5, test in any step can be manually skip, convenient test.
6、試驗結果可存儲，并可倒出至U盤計算機進行永久存儲數據，便于日后查看每批試樣的結果，并進行比對。
In 6, the test results can be stored, and can be poured out to U disk computer for the permanent storage of data, for future viewing each batch of test results, and compare.
7、本儀器可以通過U盤或者遠程進行數據升級，文件程序升級，功能更強大。
In 7, the instrument can through the U disk or remote data file upgrade, upgrade procedures, functions more powerful.
8、此儀器具有計算機通訊功能接口，可通過配有程序軟件進行試驗測量，技術性更先進。
In 8, the instrument has a computer communication interface, can be measured with program software, more advanced technology.
（可根據用戶特殊要求配英文操作方法，也可配體積法）。
( according to the special requirements of users with English operation method, also can be equipped with volume method ).

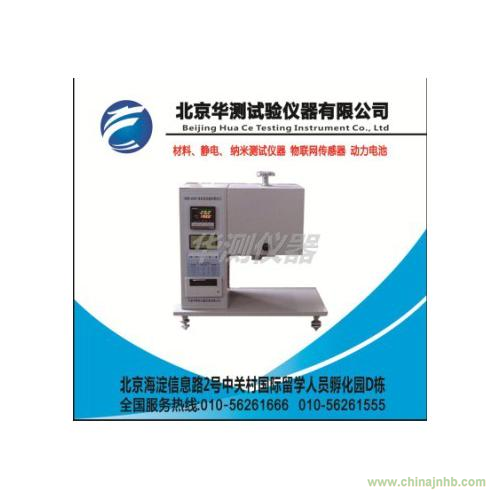

觸摸屏熔融指數儀實物圖片：
Touch screen melt index instrument:
四 主要技術參數：
Four main technical parameters:
控溫范圍： 室溫---450 ℃
Range of temperature: room temperature ---450 ℃
控溫精度： ±0.2 ℃
Temperature control precision is ± 0.2 ℃:
顯示分辨率： 0.1 ℃
Display resolution: 0.1 ℃
最大功耗： ≤500 W
Maximum power:≤500 W
溫度恢復時間： 4 min
Temperature recovery time: 4 min
活塞位置檢測：（MVR）
Piston position detector: ( MVR )
上下環距離： 30 mm
The upper and lower ring distance: 30 mm
位移控制精度：±0.1 mm
The control precision of the displacement:±0.1 mm
測試范圍：0.03-450g/10min
Test range: 0.03-450g/10min
標準件參數：
Standard parts parameter:
料筒參數：內孔 Φ9.55±0.025ｍｍ
The barrel inner hole parameters:Φ 9.55± 0.025mm
活塞參數：活塞頭Φ＝9.475±0.015ｍｍ；
Piston piston head parameters:Φ= 9.475 ± 0.015mm;
活塞頭長度 Ｈ＝6.35±0.1ｍｍ
Piston head length H = 6.35± 0.1mm
口膜參數：擠出孔Φ＝2.095±0.005ｍｍ
Export of membrane parameters: extrusion hole of Φ= 2.095 ± 0.005mm
口模配置：Φ2.095±0.005/Φ1.18±0.01mm
Die configuration:Φ0.005/ Φ 1.18± 0.01mm 2.095±
砝碼參數：
Weight parameters:
砝碼精度：±０.５％
Weight: accuracy of± 0.5%
基本配置： Ａ 0.325 ＫＧ（含壓料桿）
The basic configuration: A 0.325 KG (including pressing rod )
Ｂ 0.875 ＫＧ
B 0.875 KG
Ｃ 0.960 ＫＧ
C 0.960 KG
Ｄ 1.200 ＫＧ
D 1.200 KG
Ｅ 1.640 ＫＧ
E 1.640 KG
注：可根據用戶要求加配備砝碼
Note: according to user requirements and equipped with weights
五 主要配置及附件：
Five main configuration and accessories:
配 件 數 量 備 注
Parts number note
主 機 一臺
The main machine
微型打印機 一臺
Miniature printer
砝 碼 一套 0.325kg、0.875kg、0.960kg、1.200kg、1.640kg(可加配)
Weights a set of 0.325kg, 0.875kg, 0.960kg, 1.200kg, 1.640kg (to be added )
口 膜 一只 Φ2.095±0.005ｍｍ
Oral membrane aΦ2.095 ± 0.005mm
壓料桿 一只
A pressing rod
清料桿 一套
Discharging rod set
加料漏斗 一只
Charging hopper a
口膜通徑桿 兩只 大小各一
Oral membrane diameter rod size every two
接料盤 一個
A material receiving plate
連接電纜 一套
Cable set
主機地腳 四只
Host anchor four
附件箱 一個
Annex A
說明書 一本
Manual book
