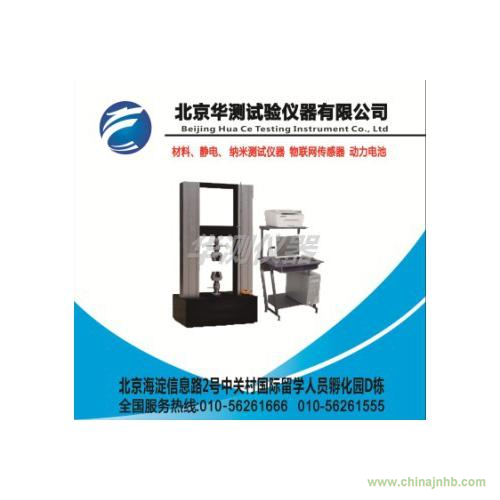

產品名稱：微機控制電子拉力試驗機

Product Name: microcomputer control electronic tensile testing machine

產品型號：HCDL-500N

Product type: HCDL-500N

電子拉力試驗機產品滿足GB/T228-2002 GB/T7314-2005 GB/T14452-1993 GB/T8653-1988 GB1040，GB1041 GB9341, GB8804, GB16491、ISO、ASTM、JIS、DIN等要求.

Electronic tensile testing machine products to meet GB/T228-2002 GB/T7314-2005 GB/T14452-1993 GB/T8653-1988 GB1040, GB1041 GB9341, GB8804, GB16491, ISO, ASTM, JIS, DIN and other requirements.

電子拉力試驗機廣泛應用于航空航天，機械制造，塑料橡膠，紡織，建材，石油化工等行業的生產和科研中.適合化工生產企業，高等院校，科研院所用于對金屬，非金屬材料的力學性能的測定.電子拉力試驗機主要用于材料的拉伸，剪切，剝離，撕裂等試驗；

Electronic tensile testing machine is widely used in aerospace, machinery manufacturing, plastics and rubber, textile, building materials, oil and chemical industry production and scientific research . Suitable for chemical production enterprises, universities, scientific research institutes for metal, non-metallic materials - Determination of mechanical properties . Electronic tensile testing machine is mainly used for tensile, shear, peeling, tearing test;

主要適用范圍及功能：

Main applicable range and function:

電子拉力試驗機采用全數字測控技術和計算機技術、配置先進、功能強大。主機為雙絲杠，采用進口高精度無間隙滾珠絲杠，高強度光杠構成主要機械結構，從而使得整個機器形成了高剛性的框架結構，使得載荷效率和位移精度大大提高.電子拉力試驗機傳動系統則采用松下電機及全數字交流伺服系統，具高響應頻率，高傳動效率，低噪音，傳動平穩、具有精度高，慣性小，調整范圍寬，結構緊湊，使用操作方便，性能穩定等優點.

Electronic tensile testing machine with full digital control technology and computer technology, advanced configuration, function is powerful. The host for the double screw rod, imported high precision seamless ball screw, high intensity light bars constitute the major mechanical structure, so that the whole machine forming high rigid frame structure, makes the load efficiency and the displacement precision is greatly improved. Electronic tensile testing machine drive system adopts a Panasonic motor and the full digital AC servo system, with high frequency response, high transmission efficiency, low noise, stable transmission, has the advantages of high precision, small inertia, wide adjustment range, compact structure, convenient operation, stable performance and other advantages.

電子拉力試驗機軟件功能特點：

Electronic tensile testing machine software:

1、電子拉力試驗機可同時標定多個傳感器，擴展了測試范圍；全量程不分檔。可支持傳感器滿負荷的0.2-100；

In 1, electronic tensile testing machine at the same time calibration of multiple sensors, expanded the test range; range regardless of file. The sensor can support full load 0.2-100;

2、曲線顯示方式:力-變形曲線，力-位移曲線，力-時間曲線，變形-時間曲線，應力-應變曲線，等多種曲線；

2, curve display mode: force deformation curve, force - displacement curve, the force time curve, deformation time curve, curve of stress strain curve, etc.;

3、動態試驗過程中可以在同一窗口、同時間顯示所有曲線。

3, the dynamic test process can be in the same window, with shows of all time curve.

4、鼠標在曲線上可得到任意采樣點的力，變形；一組試驗的曲線可以多種顏色疊加對比；試驗曲線上的任意一段可進行區域放大分析；

In 4, the mouse on the curve can be arbitrary sampling point force, deformation; a group of experimental curves can be a variety of color overlay contrast; test curve of arbitrary section can be enlarged zone analysis;

5、可實現冷作硬化實驗方法。（金屬有，非金屬沒有）

5, can realize cold hardening experiment method. ( metal, non-metallic no )

6、自動對試驗結果進行分析，計算上下屈服極限、強度等數據。

6, automatic analysis of the test results, calculation of limit, yield strength data.

7、自動計算彈性模量。

7, automatic calculation of elastic modulus.

8、可對試驗數據進行編輯修改，靈活適用；試驗條件及測試結果等數據可自動存儲；試驗報告格式可編輯，靈活可變，適用于不同用戶的不同要求；采樣點導入EXECL，試驗結果導入EXECL。

In 8, can be carried out for test data editing, flexible and adaptable; test conditions and test results and other data can be automatically stored; test report format that can be edited, flexible, applicable to the different requirements of different users; sampling points into EXECL, the test results into EXECL.

9、可對一組試驗中曲線數據的有效與否進行人為選定；

In 9, of a group of test curve data is effective or not artificially selected;

10、移動橫梁可自動返回試驗初始位置；

In 10, the movable cross beam can be automatically returned to test the initial position;

11、可手動控制橫梁上下移動。

11, can manually control the beam to move up and down.

注：電子拉力試驗機軟件功能可根據客戶要求特殊處理制作。

Note: electronic tensile testing machine software function according to the customer request special processing production.

主要技術參數：

Main technical parameters:

最大負荷： 500 N

Maximum load: 500 N

有效測力范圍（%F?S）:0.4～100（內外部分檔）

Effective measure range ( %F ?S ): 0.4～ 100 ( inner and outer portion. )

測力示值精度： ±0.5％

Force value precision:± 0.5%

測力分辨率： 1/100000

Force measurement resolution: 1/100000

試驗速度范圍： 0.005-500 mm/min

Test speed range: 0.005-500 mm/min

(特殊測試速度可根據客戶需求定制)（無級調速，任意設置）

( special testing speed can be customized according to customer demand ) ( stepless speed regulation, arbitrarily set)

速度示值精度： ±0.5％

Speed indication accuracy: ± 0.5%

示值變形精度： ±0.5％（FS）

Indication: deformation accuracy of± 0.5% ( FS )

有效測變形范圍（%F.S）:0.2～100（內外不分檔）

Effective measurement of deformation range ( %F.S ): 0.2～ 100 ( outer and inner profile)

有效拉伸空間： ≥800 mm （可按用戶要求擴展）

The effective tensile space:≥ 800 mm ( user requirements can be extended )

有效試驗寬度： 400 mm （可按用戶要求擴展）

Effective test width: 400 mm ( user requirements can be extended )

開放式數據聯結口，可實現載荷、變形、位移、速度等閉環控制。

Open data link port, can realize the load, deformation, displacement, speed closed loop control.

動力系統:日本松下交流伺服電機+松下交流驅動器＋德國艾斯勒減速機＋進口滾珠絲桿＋高強度光桿直線軸承＋同步帶傳動

Power system: Japanese Panasonic AC servo motor + Panasonic AC drive + German Eisler reducer + imported ball screw + high strength rod linear bearings + synchronous belt transmission

數據傳輸方式：RS232傳輸

Data transmission method: RS232 transmission

安全裝置:過載緊急停機裝置、上下行程限定裝置、漏電自動斷電系統、自動斷點停機功能。

Safety device: overload emergency shutdown device, upper and lower stroke limiting device, leakage automatic power system, automatic breakpoint stop function.

手控方式：手動可控操作盒。

Manual mode: manual controlled operation box.

使用電源：∮220V 50HZ。

The use of power: 220V 50HZ.

功率：約200W

Power: about 200W

主要配置：

Main configuration:

電子拉力試驗機主機一臺（進口滾珠絲杠，高強度光杠，松下電機及伺服系統）

Electronic tensile testing machine a ( imported ball screw, high intensity light bars, Panasonic motor and servo system )

 高精度傳感器一只

A high precision sensor

 拉伸夾具一套（具體類型可按用戶試驗情況確定）

Clamp for drawing a ( specific types can be determined by user test )

 品牌計算機一套

Brand computer set

 A4彩色噴墨打印機一臺

A4 color inkjet printer

試驗軟件一套（含備份光盤一張）

Test a set of software (including backup CD )

說明書一份

A manual

大變形一套（可選配加價）

The large deformation of a set of (optional increase)

小變形一套（可選配加價）

A set of small deformation ( optional increase)
