產品信息Product information：

液壓錘打樁機是柴油電啟動，可按地層土質不同調整液壓，以達到適當的沖擊力進行打樁，是一種新型打樁機。中小型液壓打樁機,常用于公路護欄的打樁,高速公路護欄建設。與柴油打樁機相比，液壓錘打樁機的能量傳遞效率能夠達到70%~95%，而柴油錘打樁機的能量傳遞效率僅為20%~30%，液壓錘打樁機打樁控量精確，能實現不同地層的打樁作業；液壓錘打樁機在減少噪聲，震動和噪音方面有出色表現，特別適合城市施工需要。液壓錘打樁機節能減排效果明顯，是未來打樁機發展的主流。

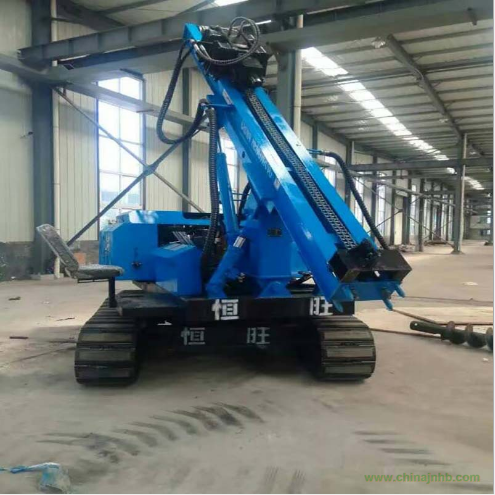

Hydraulic hammer is diesel electric start, hydraulic pressure can be adjusted according to different soil strata, in order to achieve the appropriate impact to pile driving, is a new kind of pile drivers.Small and medium-sized hydraulic pile driver, often used for highway guardrail piling, highway guardrail construction.Compared with diesel pile hammer, hydraulic hammer of the energy transfer efficiency can reach 70% ~ 95%, and the energy transfer efficiency of diesel hammer is only 20% ~ 30%, and the hydraulic hammer pile driving control precision, can achieve different strata of piling;Hydraulic hammer in reducing noise, vibration and noise has outstanding performance, especially suitable for city construction needs.Hydraulic hammer effect is obvious, energy saving and emission reduction is the mainstream of future development driver.

產品參數Product parameters:

HWZGX-600L
樁管直徑 ：100~220mm
樁管最da長度：  6m
柴油錘規格  ：8T
回轉角度：360°

地面允許大坡度： 20°
移位方式 ： 液壓履帶式
外形尺寸
工作狀態(長、寬、高）：6*2.2*3.2m
運輸狀態 ：6*2.2*3.2m
整機重量： 6T

L HWZGX - 600.
The pile pipe diameter: 100 ~ 220 mm
Pile pipe maximum length: 6 m
Diesel hammer specifications: 8 t
Rotary Angle: 360 °
The ground allows large slope: 20 °
Shift: hydraulic crawler
Overall dimensions
Working status (length, width and height) : 6 * 2.2 * 2.2 m
Cargo status: 6 * 2.2 * 2.2 m
The weight: 6 t
