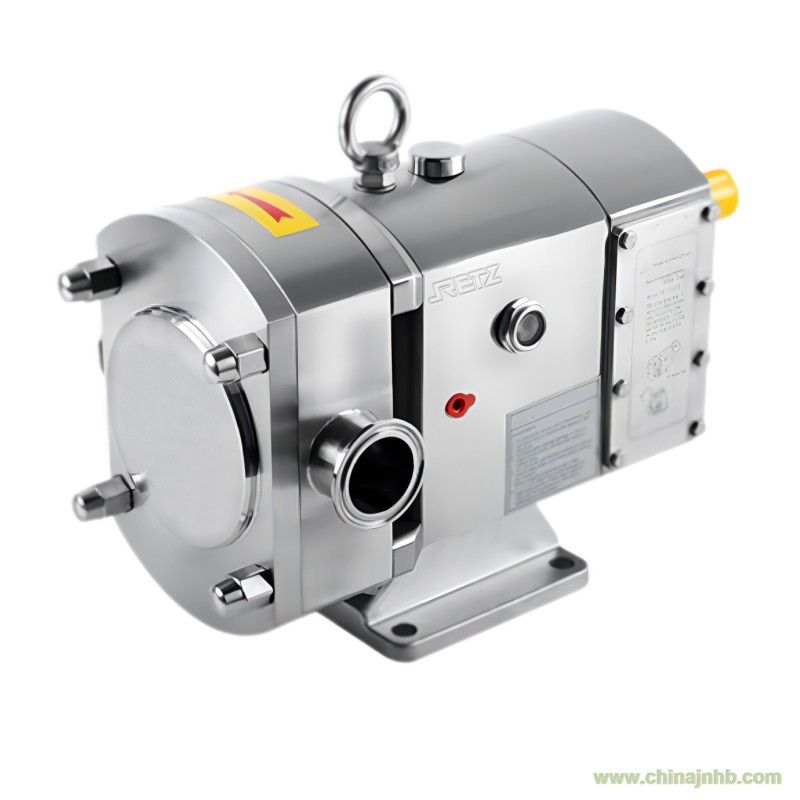

進口衛生級全不銹鋼轉子泵為全不銹鋼配置正位移凸輪轉子泵，是根據美國3A-02-11 嚴格衛生要求設計的，非常適合于食品加工，飲料、果汁、乳制品、化妝品、制藥工業等各種高粘稠和低粘稠物料的輸送，也可以輸送含有固體顆粒物料，還可以應用在CIP和SIP系統上。進口衛生級全不銹鋼轉子泵還具有其他容積泵所不具備的性能，如低脈沖現象、高壓力、旋轉雙向可逆、靈活功能組合retz The imported
sanitary grade all stainless steel rotor pump is a positive displacement cam
rotor pump equipped with all stainless steel. It is designed according to the
strict hygiene requirements of 3A-02-11 in the United States, and is very
suitable for conveying various high and low viscosity materials such as food
processing, beverages, juice, dairy products, cosmetics, pharmaceutical
industries, etc. It can also transport materials containing solid particles,
and can also be applied in CIP and SIP systems. This pump also has performance
that other volumetric pumps do not have, such as low pulse phenomenon, high
pressure, reversible rotation, and flexible functional combinations
進口衛生級全不銹鋼轉子泵選型參數
流量范圍 Max.flow：90m3
/h/395 GPM
壓力范圍 Max.pressure：15bar/220
Psi
溫度范圍 Max.Temperature：150℃/302℉
轉速范圍 Max.rev: 750 rpm
材質 Material：
316L,1.4404,ASME BPE 316L ,1.4435 NB2 Fe≤0.5%
表面處理 Surface treatment：≤
Ra0.8μm，≤ Ra0.6μm，≤
Ra0.4μm
富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
