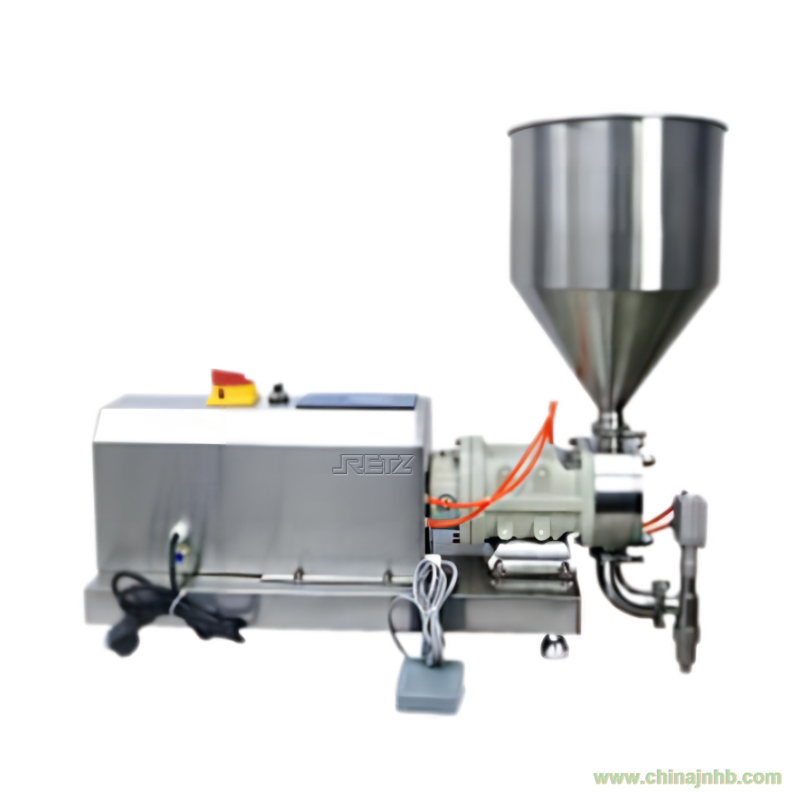

進口衛生級料斗式轉子泵設計有方形法蘭料斗和圓形法蘭料斗兩種，該裝置可有效的解決不易流動的物料輸送 retz The imported
sanitary hopper type rotor pump is designed with two types: square flange
hopper and circular flange hopper. This device can effectively solve the
problem of difficult to flow material transportation
進口衛生級料斗式轉子泵選型參數
流量范圍Max.flow：90m3/H
壓力范圍Max.pressure：15bar
溫度范圍Max.Temperature：150℃
轉速范圍Max.rev：750
rpm
材質：ASTM 316L,1,.4404
內表面：Ra0.8μm
進出口連接方式：垂直式 Inlet and outlet connection
methods: Vertical
蝶形轉子(標準)；三葉轉子；二葉轉子；單蝶型轉子 Butterfly rotor (standard); Three leaf rotor; Two
leaf rotor; Single butterfly rotor
機封：單端面機封(標準)、雙端面機封(選項)，材質
SIC/SIC,TC/TC Machine seal: single end machine seal (standard), double end
machine seal (option), material SIC/SIC, TC/TC
適于CIP清洗和SIP殺菌
Suitable for CIP cleaning and SIP sterilization
