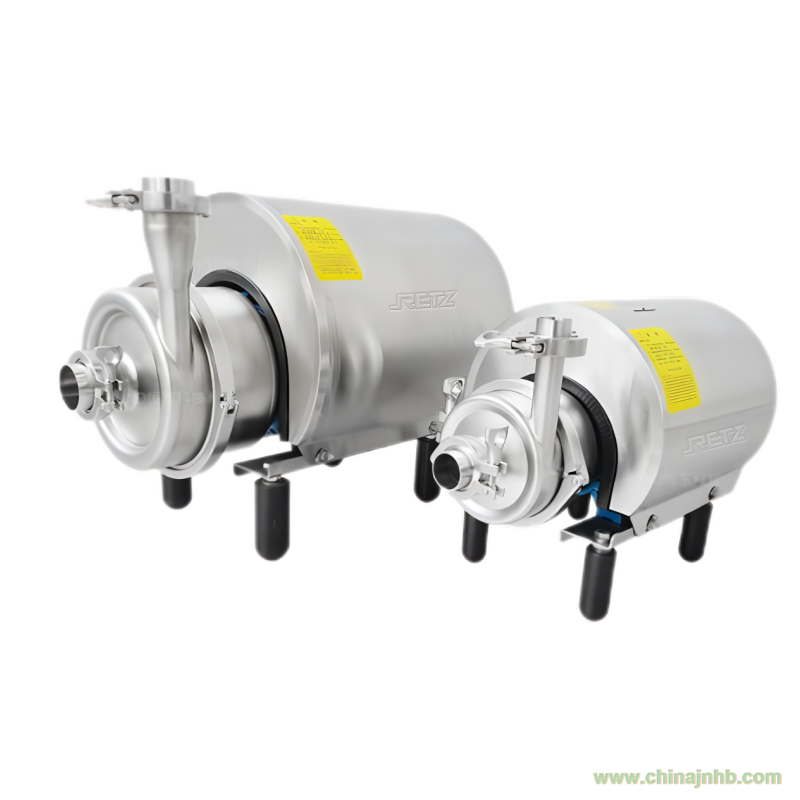

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級壓力平衡式離心泵不僅優化了內部結構、葉輪設計、死角處理、機封壓力平衡設計且機封完全被處在沖洗區域。我們還對泵外部衛生也進行了優化，使其內部更加衛生、外部減少死角，由于沒有死角區域，它非常容易被CIP清洗、SIP殺菌等。另外我們對泵保持了最靈活性組合應用，如，泵出口角度可以從 0°-360°之間任意調整，泵蓋采用卡箍式連接，這樣對泵維護和保養及機封的更換，保持了高效，降低了人員高度專業性的要求，而完成這些無需特殊的工具。因而達到了高效、衛生、高可靠性及低成本的目的，成為一款高性能的泵。retz The imported sanitary grade pressure balanced centrifugal pump not only optimizes the internal structure, impeller design, dead angle treatment, mechanical seal pressure balance design, but also the mechanical seal is completely in the flushing area. We have also optimized the external hygiene of the pump to make it more hygienic internally and reduce dead corners externally. Due to the absence of dead corner areas, it is very easy to be cleaned by CIP, sterilized by SIP, etc. In addition, we have maintained maximum flexibility in the combination of pump applications, such as the pump outlet angle being adjustable from 0 ° to 360 °, and the pump cover being connected with clamps. This ensures efficient pump maintenance and replacement of mechanical seals, reduces the need for highly specialized personnel, and eliminates the need for special tools to complete these tasks. As a result, it has achieved the goal of efficiency, hygiene, high reliability, and low cost, becoming a high-performance pump.

進口衛生級壓力平衡式離心泵選型參數

流量flow ：140m3/h

揚程 lift：70M

溫度 Temperature : -20到140℃

功率 power：1.1kw-30KW

材質 material quality： 304 /316L,1.431/1.4404,ASME BPE 316L ,1.4435 NB2 Fe≤0.5%

表面處理 Surface Treatment：≤ Ra0.8μm，≤ Ra0.6μm，≤ Ra0.4μm

機封 Machine seal：單機封、雙機封  Single seal,doubleseal

進/出口連接  ： 螺紋、卡箍、法蘭、無菌法蘭 Inlet/outlet connections: threads, clamps, flanges, sterile flanges

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
