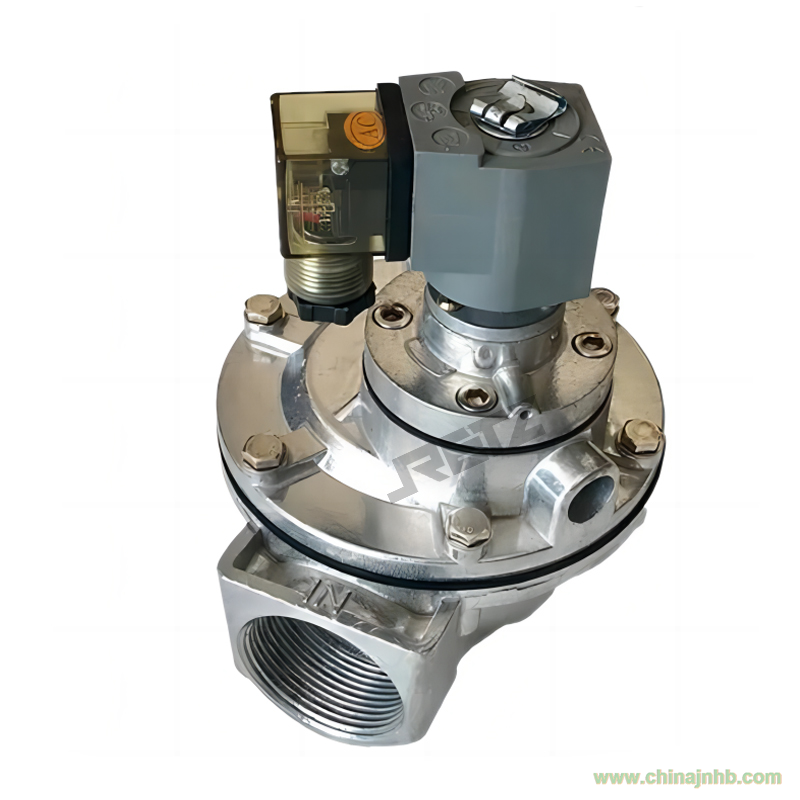

品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口直通式電磁脈沖閥亦稱T型電磁脈沖閥，其進氣口之間夾角為180°,(進出口中心線為同一直線與儲氣筒連接，出口與噴吹管連接.受脈沖控制儀輸出信號的控制，對濾袋逐排(室)噴吹清灰，使除塵器的阻力保持在設定的范圍之內，以保證除塵器的處理能力和收塵效率,氣流暢通，能提供符合要求的清灰氣脈沖RETZ The straight through Electromagnetic pulse valve, also known as T-type Electromagnetic pulse valve, has an included angle of 180 ° between the air inlets (the inlet and outlet center lines are the same straight line and connected with the air reservoir, and the outlet is connected with the blowing pipe. Controlled by the output signal of the pulse controller, the filter bags are sprayed row by row (room) to clean the dust, so that the resistance of the dust remover is kept within the set range, so as to ensure the processing capacity and dust collection efficiency of the dust remover, the air flow is smooth, and the qualified dust cleaning gas pulse can be provided

進口直通式電磁脈沖閥材質說明/Material Construction

閥體Body：ADC12鋁合金 ADC12 die cast

先導組件Armature：430FR不銹鋼等材料 430FR stainless steel

膜片Diaphragm：丁晴橡膠或氟橡膠 Nitrile or Viton

彈簧Spring：321不銹鋼 321stainless steel

緊固件Fasteners：302不銹鋼 302stainless steel

全部選用好品質的成品膜片，膜片組件在制造過程中全部檢查，合格后再進入裝配線。每只成品閥都通電通氣進行噴吹檢驗后出廠

進口直通式電磁脈沖閥技術參數Technical Parameter

接口形式Joint Form：淹沒Embedded

設計壓力Design Pressure：0.2~0.8MPa

工作壓力Working Pressure：0.3~0.6MPa

環境溫度Ambient Temperature：常溫：-25~60℃低溫高溫可定制Customized for Lower or Higher Temperature

相對濕度Relative Humidity：≤85%

使用介質Working Medium：清潔空氣Clean Air

電壓Voltage：AC220VIAC110V/AC24V/DC24V/DC12V Customized

防護等級Protection Class：IP65

RETZ電磁脈沖閥是一種專為布袋式除塵器配套使用而設計的專用電磁閥，產品函蓋了直角式電磁脈沖閥、淹沒式電磁脈沖閥、直通式電磁脈沖閥、氣控脈沖閥、活塞式電磁脈沖閥、防爆系列脈沖閥等多種規格
