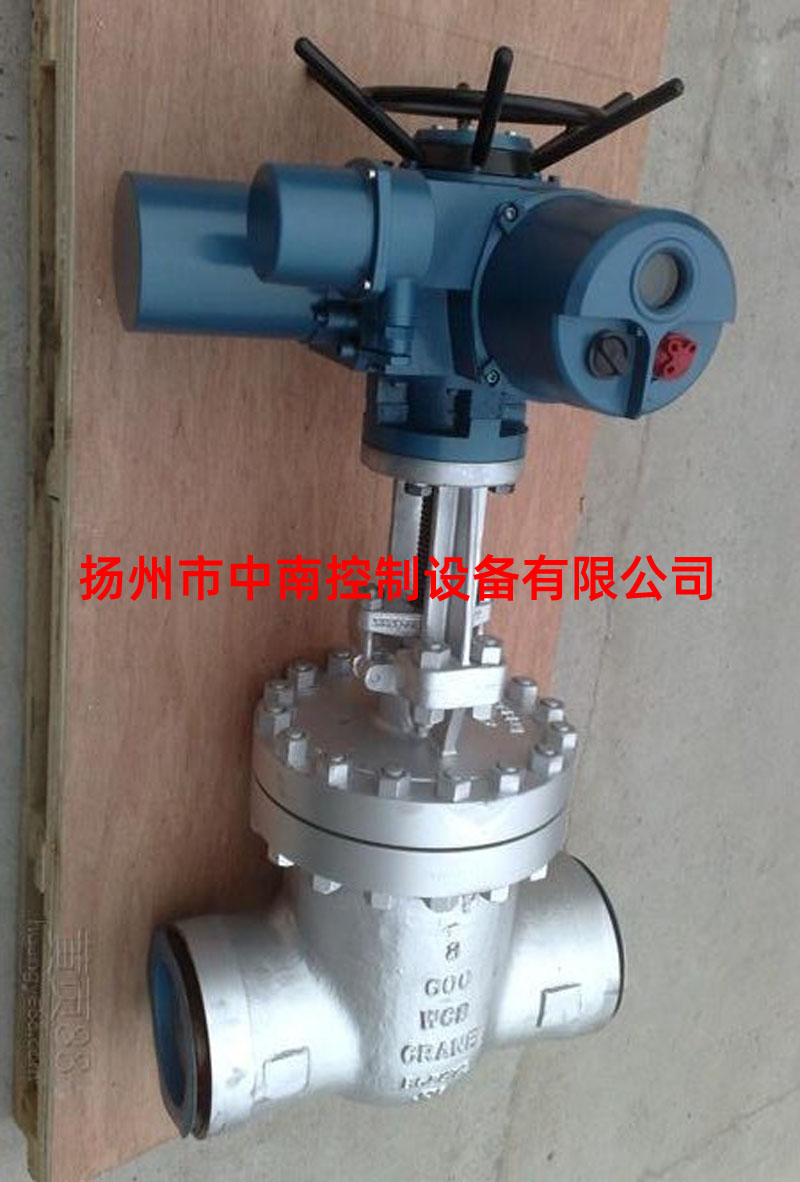

一、中南Z941H-40C DN200電動鑄鋼閘閥的主要參數
型號：Z941H-40C DN200
閥門口徑：DN200
閥門壓力：4.0MP
閥體材質：WCB
常規電壓：380V
二、中南電動閘閥的其他型號
電動法蘭閘閥主要連接及外形尺寸(PN40)
|
公稱通徑DN(in)
|
主要外形尺寸及連接尺寸(mm)-40
|
電動裝置
|
|
L
|
D
|
D1
|
D2
|
D6
|
b
|
z-Φd
|
f
|
f2
|
H
|
|
|
Z940、Z941、Z942
|
|
50
|
250
|
160
|
125
|
100
|
88
|
20
|
4-Φ18
|
3
|
4
|
665
|
Z15
|
|
65
|
280
|
180
|
145
|
120
|
110
|
22
|
8-Φ18
|
3
|
4
|
680
|
Z15
|
|
80
|
310
|
195
|
160
|
135
|
121
|
22
|
8-Φ18
|
3
|
4
|
752
|
Z15
|
|
100
|
350
|
230
|
190
|
160
|
150
|
24
|
8-Φ23
|
3
|
4.5
|
846
|
Z20
|
|
125
|
400
|
270
|
220
|
188
|
176
|
28
|
8-Φ25
|
3
|
4.5
|
908
|
Z20
|
|
150
|
450
|
300
|
250
|
218
|
204
|
30
|
8-Φ25
|
3
|
4.5
|
1087
|
Z40
|
Z941H-40C DN50, Z941H-40C DN65,Z941H-40C
DN80,Z941H-40C DN100,
Z941H-40C DN125,Z941H-40C DN150,Z941H-40C
DN200,Z941H-40C DN250,
Z941H-40C DN300,Z941H-40C DN350, Z941H-40C DN400
